no name bride pakistani Making

hello world ,

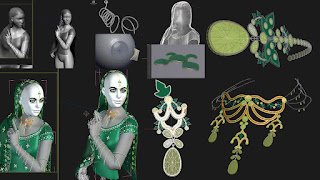

that is the first word that programmers write, same as for me i don't want to be technical about the making of the image no name so here is some simple but very time consuming steps that i will be guiding through , i started the base mesh a long time ago in 3ds max, picked it up changes a couple of edge loops and did a hell a lot of base mesh modeling like very low poly meshes locked the camera and pose made the diamonds as need for render as if not correctly modeled it would get me in trouble and i have to do the whole thing from scratch.

fig_01.



then after that i uv the objects and skin the mesh first and locked the pose. after that i setup the lighting and started the detail modeling process one by one of all pieces of geometry the necklace and other. from the binging i know that i have to render the whole thing in passes (nuke headache that was in my mind the fancy node stuff) so i was very careful to put everything in layers and to know what is going into what so later i was good to go, i did a lot of vray rt test on diamonds it was very helpful to see results in real time , and since it was only one diamond and my pc is very fast so i have experimented a lot came up with a lot of variation.

fig_02



the skin shading is always complicated but not if u divide everything into passes so that is exactly what i did i did tow backscatter passes and the all passes separately and composed them in Photoshop using screen and multiply modes. i output shadow pass using the max passes system but everything was output manual by turning shadows off and using max manage scene state tool that is almost equal to maya render layers

fig_03



hairs was just a headache they give me a lot pain i did a lot of experimentation on then i even us 3ds max plung-in called hair farm but it did not worked for me since max was crashing a hell of lot of time so i was wasting time rather then saving so i ended up using max own hair and fur which is know in Maya word as the name of shave and hair cut. rendering test were smooth so did a lot or styling and ended up changing the style as a last minute call. diamonds were quite a challenge as well so u separate them as well , the gold part and the diamond itself to get the look right i have to change the hdr color so i edit it to green and put it in the environment slot and render diamonds. and same goes for the cloth

fig_04



finally the cloth was hell of thought then it looked but did all passed and composited them in photoshop

cloth was just sculpted little bit in Mudbox just for folds and all other normal were generated using crazy bump.

fig_05



one step closer to end a lot comp experiments with hairs and texture and basic color till the last moment i am making this (going crazy).

fig_06



and at the end the final image that was finally finalized. thanks for the push from my friends

fig_07
